Shelving & Racking
Stowshelf

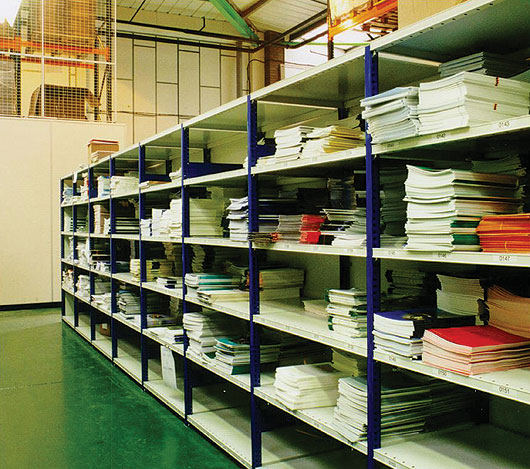

Stowshelf is a smart quality fully adjustable steel shelving system which can be built in single or multi-tier configurations. Bays can be open or clad with steel side and back panels, shelves can be quickly adjusted on a pitch of 25mm, a wide range of accessories including plinths, dividers and lockable door sets are available.

A quality finish is achieved by the application of an epoxy polyester powder paint. Uprights are finishes in dark blue RAL 5010, shelves and accessories are light grey RAL 9002.

Sizes:

Bay width - 1000mm

Bay heights - 2000mm - 2500mm

Shelf depths - 300mm, 400mm, 500mm and 600mm

Shelf loading - 160Kg

Number of shelves as required.

Please contact us with your requirements or we can arrange for our technical representative to visit and advise. We offer a free layout and design service and installation of required.

Stow Shelf

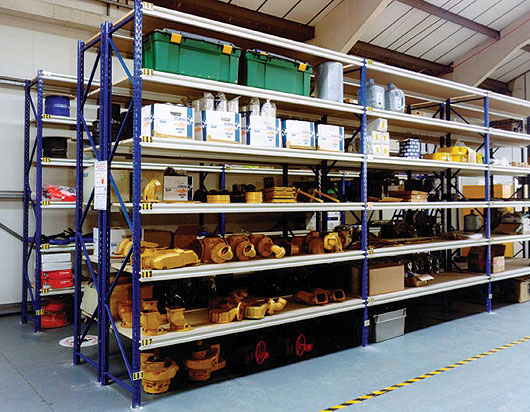

Midirack is an economical high quality fully adjustable long span shelving system. Uprights are punched at 50mm centres for maximum adjustment of beam levels. Beams are available in five different lengths and are made from a single cold rolled section incorporating a step to accommodate 22mm high density chipboard shelves. A quality finish is achieved by the application of an epoxy polyester powder paint. Uprights are finished in dark blue RAL 5010, beams in light grey RAL 9002.

Sizes:

Bay width - 1000mm, 1200mm, 1500mm, 1800mm, 2000mm and2400mm

Bay heights - 2000mm, 2500mm and 3000mm

Shelf depths - 600mm, 800mm and 1000mm

Shelf loading - 500Kg per level (400Kg on 2400mm spans)

Shelf types:

Chipboard, Melamine faced boards and Galvanised steel panels

Please contact us with your requirements or we can arrange for our technical representative to visit and advise. We offer a free layout and design service and installation of required.

Midirack
